本产品默认为不带电池价格，如需要电池请联系客服！

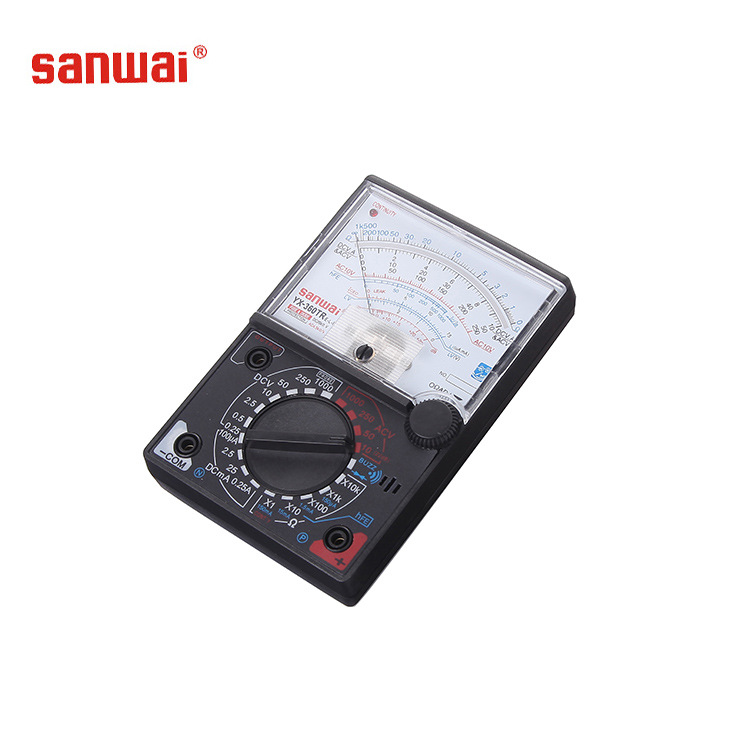

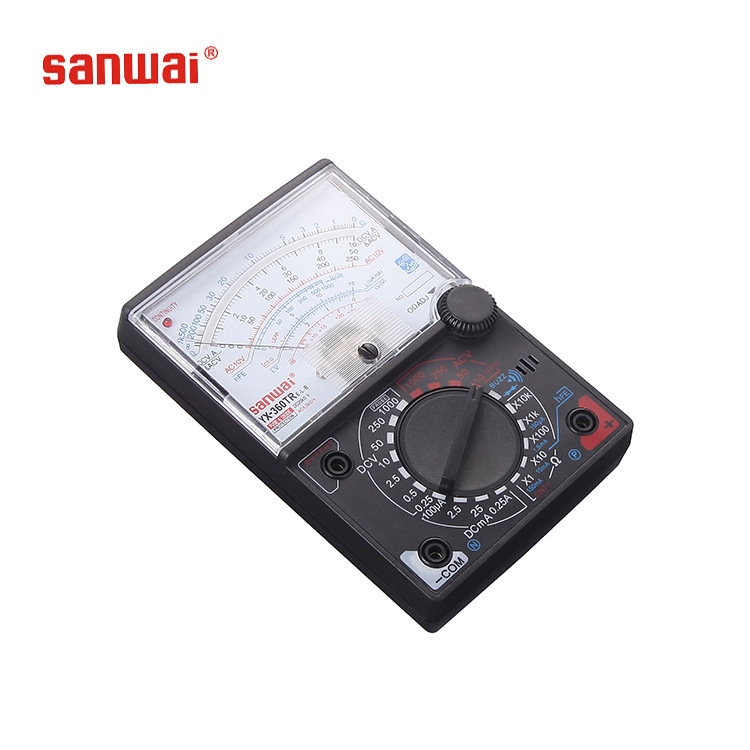

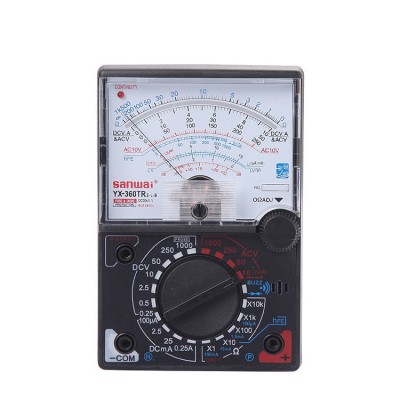

厂家直销指针万用表，YX-360TRE-L-B
带指示灯，蜂鸣装置！
方便携带，安全可靠!
愿哈博产品给您的生活带来便利!
| Specifications | Measure AC&DC voltage, DC current, resistance, AF level, transistor parameter, load current, load voltage, capacitance,inductance |
Excellent DC resolution factor of 2mV and expanded resistance measurement from 0.2Ω to 20MΩ | |
Series capacitor terminal (OUTPUT) blocks DC to enable measurement of only AC components | |
Continuity checking with an LED indicator &BUZZER | |
A large and bright meter with a scale length of 80mm and ifs sensitivity of 44uA at full scale | |
diode protection | |
Measures hFE to 1000 using optional TR connector | |

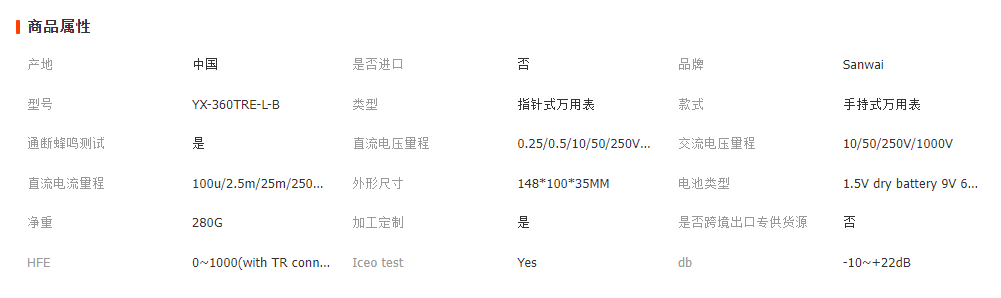

Model name: |
YX360TRE-L-B |
| Size: | 148*100*35MM |
| Weight: | 280g |
| DCV: | 0.25/0.5/10/50/250V/1000V ± 4%f. S. |
| ACV: | 10/50/250V/1000V ± 5%f. S. |
| DCA: | 100u/2.5m/25m/250mA ±4%f. S. |
| OHM: | *1/*10/*100/*1000/*10000Ω |
| dB: | -10~+22dB |
| L1: | 150u/1.5m/15m/150mA |
| HFE: | 0~1000(with TR connector) |
| Power supply: | R6 (1.5V)*2, 622F 9V*1 |
| PACKING: | 60PCS/CARTON, G.W./N.W.:13/12KGS, MEAS:430x320x405MM |

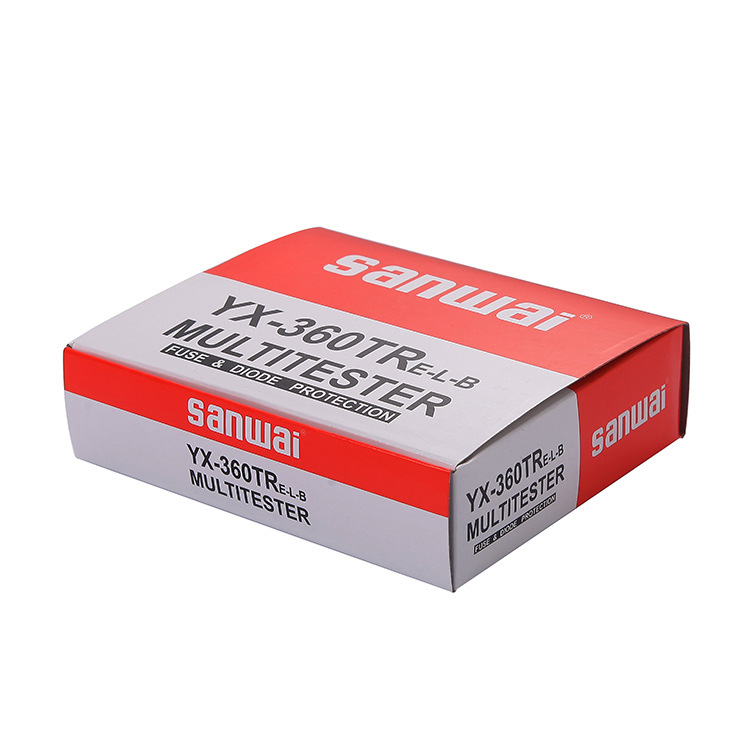

配件：1.电表 2.接线笔 3.电池 1.5V*2，9V*1(可选) 4.手册 5.彩盒
