1、 ZP-LED系列LED电源浪涌保护器
ZP-LED series LED power surge protectors
ZP-LED系列产品是我公司专门为LED户外照明系统设计的全系列电源浪涌保护产品，该产品可安装在LED灯具的灯罩内或控制柜内。应用于LED路灯，隧道灯，户外景观灯等众多户外照明系统，保护LED户外照明供电系统免遭雷击损坏。
ZP-LED series products are our company specially designed for the LED outdoor lighting system design of the whole series of power surge protection products, the product can be installed in the lamp shade of the LED or control cabinet. LED street lamps, tunnel lights, outdoor landscape lights, outdoor lighting systems, protection of LED outdoor lighting power supply system from lightning damage.
技术参数：Technical Data
型号/Model | ZP-LED-B300A | ZP-LED-B275A | ZP-LED-B175A | ZP-LED-B150A | ZP-LED-B85D | ZP-LED-B65D | ZP-LED-B45D |
最大持续运行电压/ Max. continuous operating voltage： Uc | 300VAC | 275VAC | 175VAC | 150VAC | 85VDC | 65VDC | 45VDC |
标称电流/ Nominal current: IL | 1.6A | 1.6A | 1.6A | 1.6A | 1.6A | 1.6A | 1.6A |
标称放电电流/ Nominal discharge current: In (8/20μs) | 7.5kA | 7.5kA | 7.5kA | 7.5kA | 7.5kA | 7.5kA | 7.5kA |
最大放电电流/ Max. discharge current: Imax (8/20μs) | 15kA | 15kA | 15kA | 15kA | 15kA | 15kA | 15kA |
混合波/Mixed wave: Uoc | ≤15kV | ≤15kV | ≤15kV | ≤15kV | ≤15kV | ≤15kV | ≤15kV |
电压保护水平/ Voltage protection level: （In）Up | ≤1.2kV | ≤1.0kV | ≤600V | ≤500V | ≤300V | ≤200V | ≤120V |
响应时间/Response time:ta | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
工作状态指示/ Working status indicator | 绿灯：正常；灯灭：失效/ Green light: normal; off: failure | ||||||

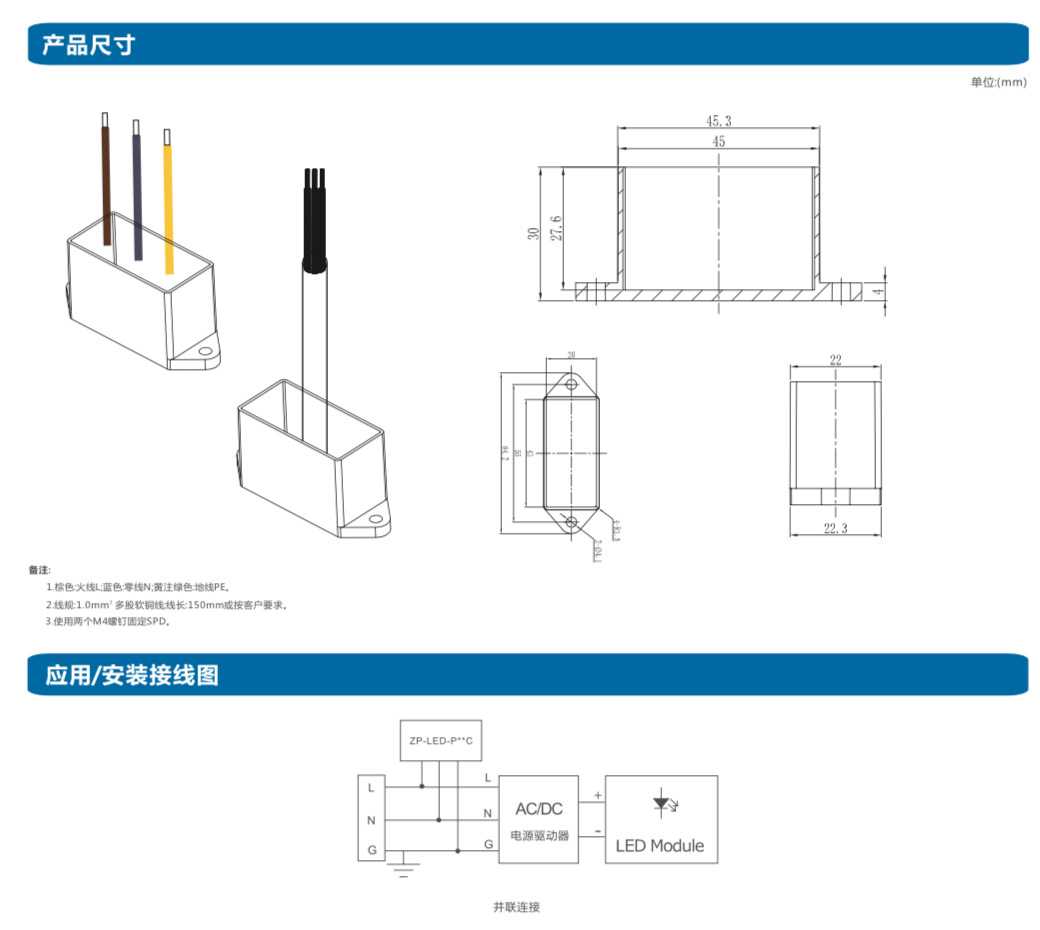

外形尺寸/Dimensions | 65x22x38mm | ||||||
连接导线/ Connecting wire | 1.5mm2 | ||||||
外壳材料/ Shell material | PA阻燃防火材料、PA flame retardant plastics，UL94-V0 | ||||||
外壳颜色/ Shell color | 黑色/Black | ||||||
工作环境/ Working environment | 环境温度/ temperature：－40℃～＋85℃；相对湿度/ Relative humidity：≤95% | ||||||
安装支架/ Mounting bracket | 壁挂式/Wall type | ||||||
外壳保护等级/ Shell protection grade | IP67 | ||||||
