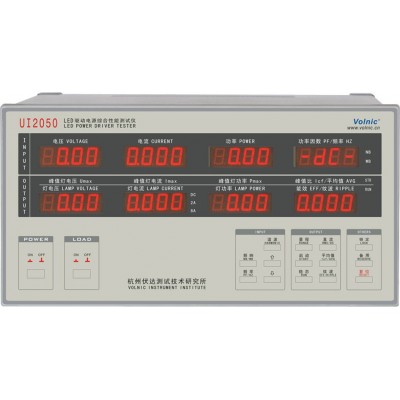

伏达UI2050c测试仪 LED驱动电源综合测试仪 测综合测试仪

商品描述

UI2050C测试仪是LED驱动电源综合测试仪，满足GB/T 24825-2009及IEC62384:2006等国内、国际标准

对LED灯电性能的测试要求。

UI2050 tester is for LED power driver, meet GB/T 24825-2009 ,IEC62384:2006 and other
national and international test standard of LED electrical property

性能Functions:

◆输入特性测试(交流) Input(AC)

    测量输入电压、电流、功率、功率因数、电网频率、相位角、总谐波及0～50次各谐波分量

    Input voltage,current,power,PF,frequency,phase angle, total harmonic and 0~50th
    harmonic components

◆输入特性测试(直流) Input(DC)

    测量输入电压、电流、功率

    Input voltage,current,power

◇输出特性测试(交流) Output(AC)

    测量灯电压、灯电流、灯功率

    lamp voltage,lamp current,lamp power

◇输出特性测试(直流) Output(DC)

    测量输出灯电压、灯电流、灯功率、纹波电流

    lamp voltage,lamp current,lamp power,ripple current

◇输出启动特性测试(直流) Ouput startup(DC):

   测量灯电压、灯电流的0～2秒内变化曲线及数据

    Test changing curve and data of lamp voltage,lamp current within 2 seconds

◆输入精度Input accuracy:±(0.1% reading+0.1% range+1 digit)

◆输出精度Output accuracy:±(0.1% reading+0.1% range+1 digit)

◆八窗口显示输入特性、输出特性各参数，便于比较、分析

    8 windows for displaying input and output parameters simultaneously, convenient for
    comparison and analysis

◆输入、输出电流测试频响1MHz，能够准确测量各类LED驱动电源

    Frequency response up to 1MHz lrms, content to every LED power

◆测试快速，1秒钟实现输入、输出各参数测试

    Input and output parameters tested simultaneously within 1 second

◆便携型，内含单片微机，尤其适用于开发和现场生产

    Portable style with single board micro-computer suitable for R&D and manufacturing spot

◆可以与PC机通讯，提供专用软件，在中文版Windows98/2000/XP/Vista下运行，人机界面好，美观，
    操作方便；中英文版面同时提供

    Special program running under Windows 98/2000/XP/Vista provided for communication with
    PC,both Englishand Chinese version available
